List wagons built for the DNGR.
Click on drawing image to see large version.
| Diagram |
Description | Length |
×
|
| D1 |
2-plank open | 16ft |
×
|
| D2 |
4-plank coal wagon | 16ft |
×
|

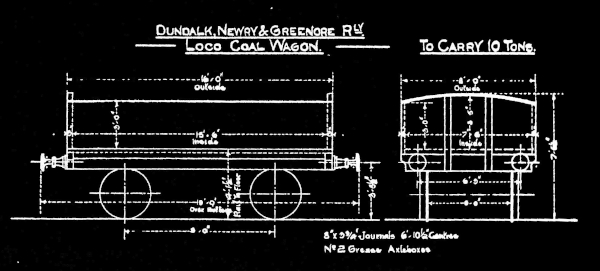

| D3 |
4-plank loco coal wagon | 16ft |
×
|

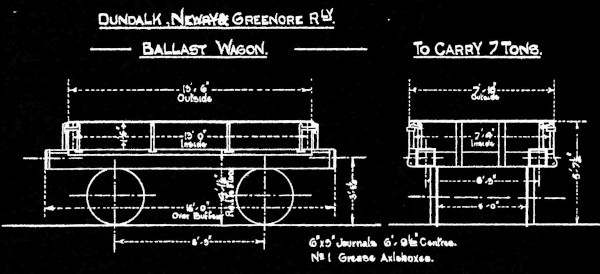

| D4 |
Ballast wagon | 13ft 6in |
×
|

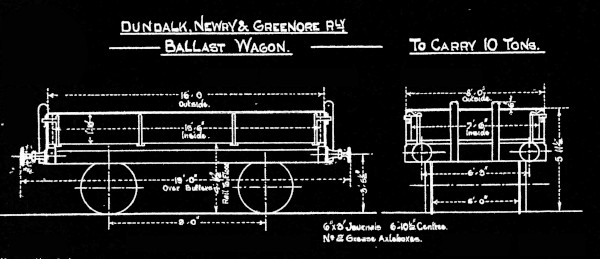

| D5 |
Ballast wagon | 16ft |
×
|

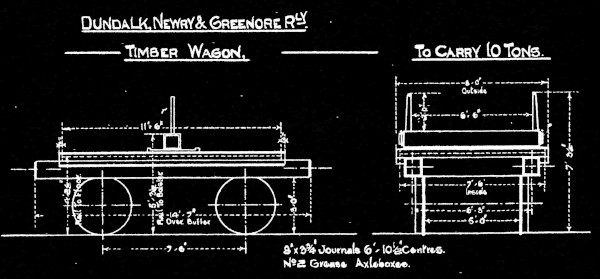

| D6 |
Timber wagon | 11ft 6in |
×
|

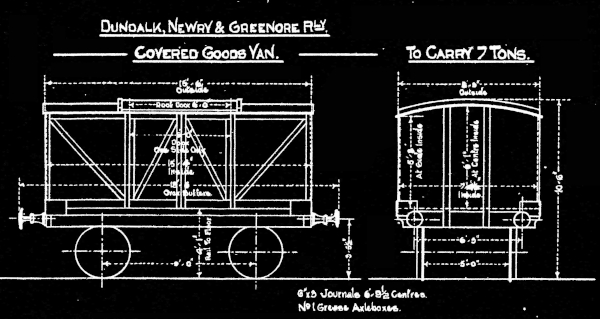

| D7 |
Covered goods van | 15ft 6in |
×
|

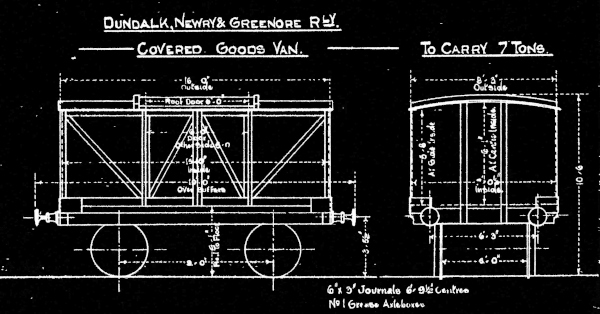

| D8 |
Covered goods van | 16ft |
×
|

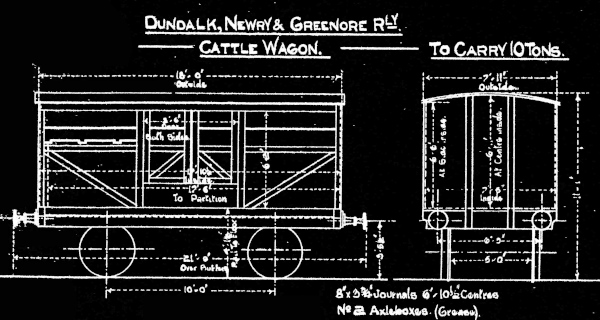

| D9 |
Cattle wagon | 18ft |
×
|
| D10 |
Goods break van | 15ft 6in |
×
|
Data kindly provided by Mike Williams.
;
